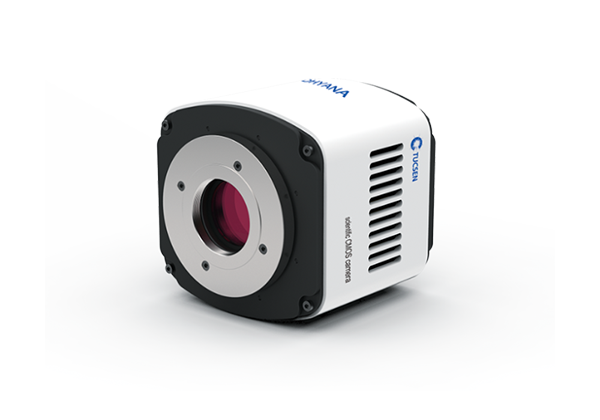

Dhyana 400DC
4MP color FSI sCMOS camera for low light imaging.
- Color sCMOS
- 6.5μm x 6.5μm Pixel Size
- 2048 x 2044 Resolution
- 22fps@8bit, 16fps@16bit
- USB3.0 Data Interface
询 价
产品介绍
Tucsen Dhyana 400DC provides a color solution for low light fluorescence imaging, which can solve the contradiction that ordinary color cameras are not sensitive enough and ordinary mono cameras cannot provide color information, with 6.5 micron pixel size perfectly matched to high magnification microscopes.
-
高灵敏度彩色成像
采用高灵敏彩色sCMOS图像芯片，兼具科研级的灵敏度和真实色彩还原能力，无论明场还是暗场拍摄，都能清晰拍摄细节丰富的彩色图像。
-
先进制冷技术
采用鑫图先进的制冷降噪技术，可显著减少暗电流噪声，延长相机曝光时间，拓展了相机在长曝光领域的更多应用可能。
-
6.5微米像元尺寸
6.5μm像素完美匹配High NA 100倍、60倍和40倍显微镜物镜的理想像元尺寸。它能很好地平衡高的空间采样率和高灵敏度的需求，充分发挥光学性能优势。
技术参数 >
- Model: Dhyana 400DC
- Sensor Type: FSI sCMOS
- Sensor Model: Gpixel GSENSE2020s
- Color/Mono: Color
- Array Diagonal : 18.8mm
- Resolution: 4MP, 2048(H)x2044(V)
- Pixel Size: 6.5μmx6.5μm
- Effective Area: 13.3mmx13.3mm
- Readout Noise: HighGain: 1.7e-
- Frame Rate: 22fps@8bit; 16fps@16bit
- Dynamic Range: 85dB
- Full-Well Capacity: Typical: 30ke-
- Shutter Type: Rolling
- Exposure Time: 21μs-10s
- Cooling Method: Forced air
- Cooling Temperature: Forced air ( Ambient at +25℃): -10℃
- Dark Current: 0.6 e-/pixel/s @ 0℃；0.35 e-/pixel/s @ -10℃
- Binning: 2x2
- ROI: Support
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout
- Data Interface: USB3.0
- Trigger Interface: Hirose
- Data Bit Depth: 16bit
- Optical Interface: C-mount
- Power Supply: 12V/8A
- Power Consumption: 50W
- Dimensions : 120mmx119mmx121mm
- Weight: 1853g
- Software: Mosaic / LabVIEW / Matlab / Micromanager
- SDK: Support
- Operating System: Windows/Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
显示更多
应用方向 >
资源下载 >
-
Dhyana 400DC Brochure
-
Dhyana 400DC Dimension
-
Software-Mosaic V1.6.8
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-MetaXpress ( with user guide )
-
Plugin-Micromanager ( with user guide )
-
Driver-TUCam Camera Driver V1.4.0.8
