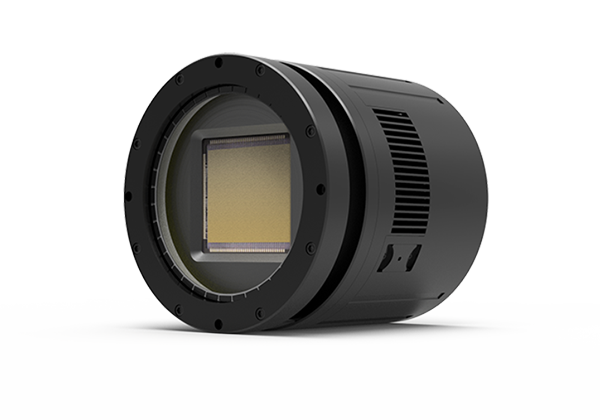

Dhyana 6060
Gpixel Sensor GSENSE6060 Large sCMOS camera
- 72%@550nm Peak QE
- 10μm x 10μm Pixel Size
- 6144 x 6144 Resolution
- 44fps@12-bit STD
- CoaXPress 2.0
产品介绍
Tucsen Dhyana 6060 is a large sCMOS camera which used Gpixel sensor named GSENSE6060. It can be used in scientific research such as astronomy observation, spot analysis, quantum imaging and so on, which can realize high-speed and high dynamic imaging and quantitative analysis in a large field of view.
-
86毫米大靶面
86mm对角线传感器提供了惊人的成像效率。它可以一次拍摄广阔的视野画面，无需拼接，提供更高的数据吞吐量和识别精度。
-
123ke- 高满阱／高动态优势
10微米的像元的光子捕获量几乎是经典CCD相机的2倍或3倍。它提供了123ke-的满阱容量，有利于在同时测量强、弱信号，非常适合复杂光场成像。
-
CXP Interface Drives Speed
Leveraging the world's leading interface standard for high-speed imaging, you can keep up with dynamic imaging subjects. CoaXPress offers very high speed and precision data transmission, with the simplicity and long cable lengths of coaxial cable.
技术参数 >
- Model: Dhyana 6060
- Sensor Type: FSI sCMOS
- Sensor Model: Gpixel GSENSE6060
- Color/Mono: Mono
- Array Diagonal : 86.8 mm
- Resolution: 36MP, 6144(H) x 6144(V)
- Pixel size: 10μm x 10μm
- Effective Area: 61.4mm x 61.4mm
- Peak QE: 72%@550nm
- Frame Rate: 44fps@12-bit STD; 19fps@12-bit HDR; 14fps@14-bit STD
- Full-Well Capacity: 123ke-
- Dynamic Range: 91dB
- Shutter Type: Rolling
- Readout Noise: 3e-(Median)
- Exposure Time: 7μs-300s
- DSNU: 1.5e-
- PRNU: 0.2%
- Cooling Method: Air & Liquid
- Max. Cooling: Air: -35℃，Liquid: -45℃
- Cooling Temperature: Air: (Ambient at +20 ): -15°C; Liquid: -25°C@20°C
- Dark Current: Air: 0.25e-/pixel/s; Liquid: 0.15e-/pixel/s
- Data Interface: CoaxPress 2.0
- Binning: 2x2, 4x4
- ROI: Support
- Timestamp Accuracy: 1μs accuracy
- GPS: Support
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA
- Data Bit Depth: 12bit, 14bit, 16bit
- Optical Interface: User-customization
- Power Supply: 12V/10A
- Power Consumption: ＜100W
- Dimensions : φ160mmx164mm
- Weight: ~4kg
- Software: Samplepro/MAXIMDL/Labview/Matlab/EPICS
- SDK: C/C++/C#
- Operating System: Windows/Linux
- Operating Environment: Working: Temperature -35~45℃/Humidity 0~95%;
Storage: Temperature -35~60℃/Humidity 0~95%
