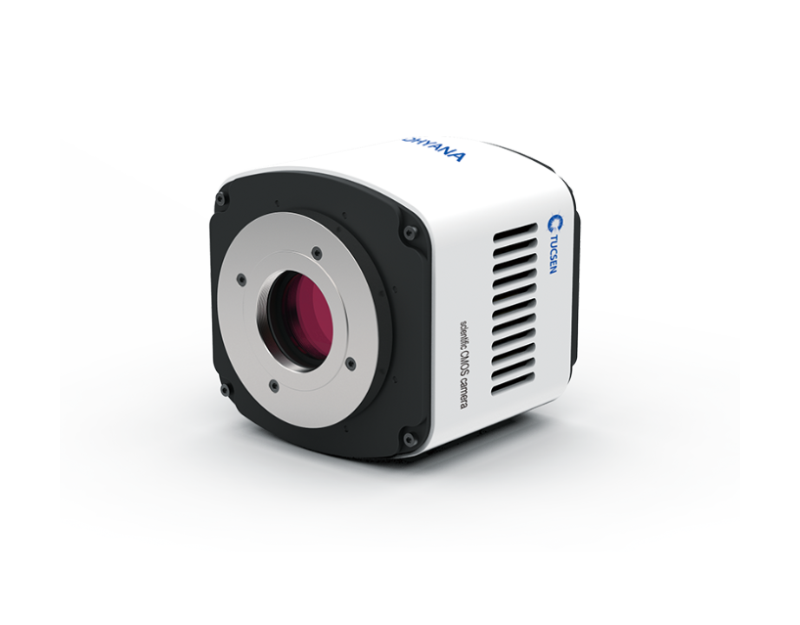

Dhyana 95V2
11μm BSI sCMOS Spectroscopy camera
- 95%@560nm Peak QE
- 11μm x 11μm Pixel Size
- 2048 x 2048 Resolution
- 48fps@12bit STD
- CameraLink & USB3.0
询 价
产品介绍
Dhyana 95 V2 is a very excellent spectroscopy camera with response range from 200 to 1100 nanometers. Not only very good signal at low lighting and increased sensitivity at UV, visible, and near-infrared wavelengths, but also higher bandwidth and faster conversion speed.
-
宽光谱成像，高信噪比
采用背照式sCMOS技术，具有200nm-1100nm的宽光谱响应能力，峰值量子效率高达95%QE，读出噪声仅1.5e-。具有显著的高信噪比优势，非常适合弱光成像应用。
-
先进定量校准技术
采用鑫图先进的定量校准技术（如DSNU／PRNU），相机成像背景质量更高，定量分析更精准，帮助科学研究获得可信赖的结果。
-
100ke-高满阱，高动态优势
得益于11μm大像元的本底优势，Dhyana 95V2的满阱容量可高达100,000个电子，有助于同时测量强、弱信号，非常适合复杂光场环境应用。
技术参数 >
- Model: Dhyana 95V2
- Sensor Type: BSI sCMOS
- Sensor Model: Gpixel GSENSE400BSI
- Color/Mono: Mono
- Array Diagonal : 31.9mm
- Resolution: 4MP, 2048(H) x 2048(V)
- Pixel Size: 11μm x 11μm
- Effective Area: 22.5mm x 22.5mm
- Peak QE: 95%@560nm
- Frame Rate: 24fps@16bit HDR, 48fps@12bit STD
- Full-Well Capacity: Typical: 80ke-@HDR; 100ke-@STD
- Dynamic Range: 90dB
- Shutter Type: Rolling
- Readout Noise: 1.6e-(Median)/1.7e-(RMS)
- Exposure Time: 21μs~10s
- DSNU: 0.2e-
- PRNU: 0.3%
- Cooling Method: Air & Liquid
- Cooling temperature: 45℃ below ambient
- Dark Current: Air：0.5e-/pixel/s，Liquid：0. 25e-/pixel/s
- Optical Interface: C-mount & F-mount
- Data Interface: USB3.0 & CameraLink
- Data Bit Depth: 16bit
- Binning: 2x2, 4x4
- ROI: 2048x1024, 2048x512, 1608x1608, 1200x1200, 1024x1024, 512x512, 256x256
- Timestamp Accuracy: 1μs
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA
- Power Supply: 12V/8A
- Power Consumption: 60W
- Dimensions : C-mount: 100mm x 118mm x 127mm；F-mount: 100mm x 118mm x 157mm
- Weight: 1613g
- Software: Mosaic / LabVIEW / Matlab / Micromanager / MetaMorph
- SDK: C / C++
- Operating System: Windows/Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
显示更多
应用方向 >
相关产品 >
-

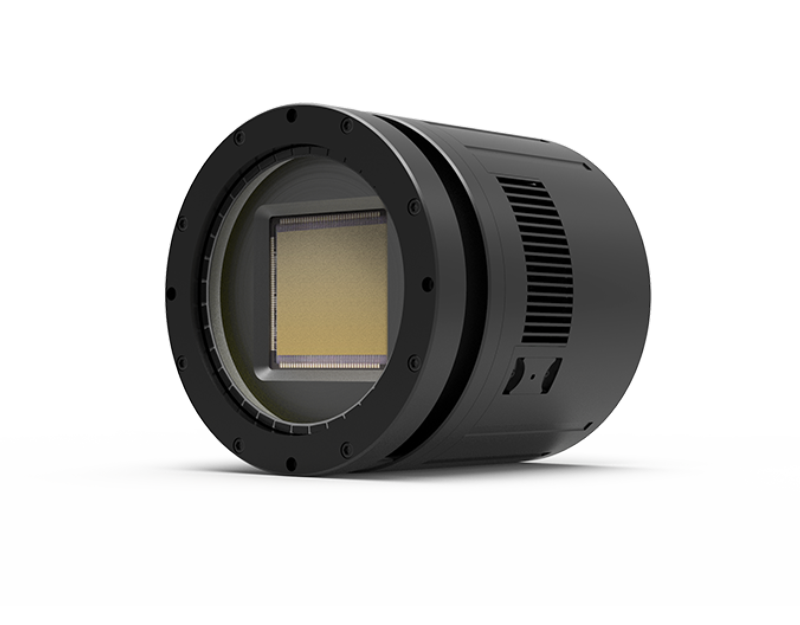

Dhyana 6060BSI
