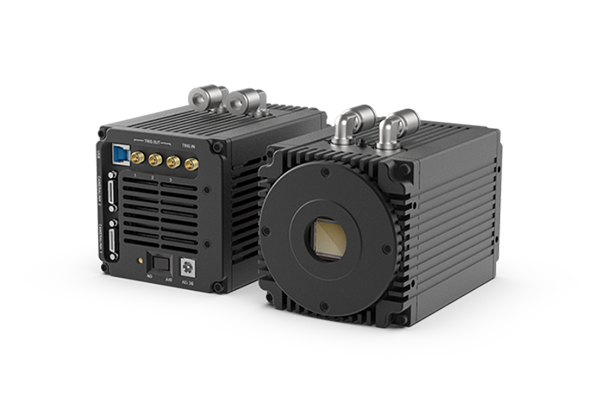

Dhyana 400BSI V2
sCMOS Camera for Advanced Microscopy Imaging
- QE: 95%@600nm
- Pixel Size: 6.5μm x 6.5μm
- Resolution: 2048(H) x 2048(V)
- Frame Rate: 74fps@4MP
- Data Interface: CameraLink & USB3.0
询 价
产品介绍
Tucsen Dhyana 400BSI V2 is the highest performance to price 6.5μm pixel sCMOS camera available today. Built for advanced fluorescence microscopy such as super-resolution microscopy, confocal microscopy, and light-sheet microscopy alike the camera delivers 95%QE high sensitivity and 1.1e- readout noise with clean backgrounds leading to repeatable and realizable data.
-

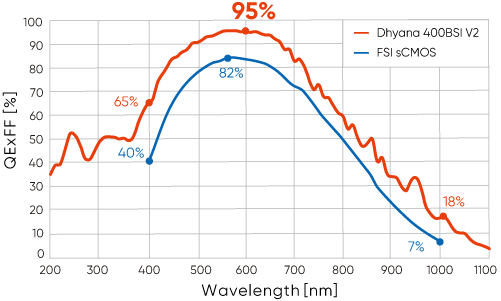

宽光谱成像，高信噪比
采用背照式sCMOS技术，具有200nm-1100nm的宽光谱响应能力，峰值量子效率高达95%QE，读出噪声仅1.1e-, 具有显著的高信噪比优势，非常适合弱光成像应用。
-

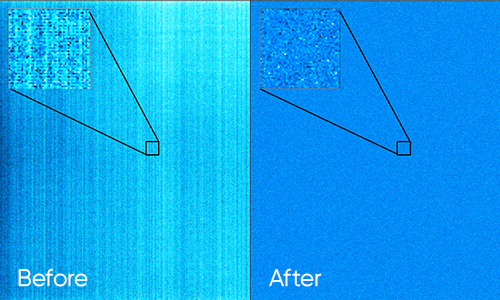

先进定量校准技术
采用鑫图先进的定量校准技术（如DSNU／PRNU），相机成像背景质量更高，定量分析更精准，帮助科学研究获得可信赖的结果，
-

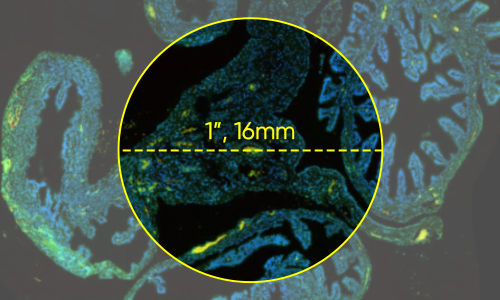

6.5微米像元尺寸
6.5μm像素完美匹配High NA 100倍、60倍和40倍显微镜物镜的理想像元尺寸。它能很好地平衡高的空间采样率和高灵敏度的需求，充分发挥光学性能优势。
技术参数 >
- Model: Dhyana 400BSI V2
- Sensor Type: BSI sCMOS
- Sensor Model: Gpixel GSENSE2020BSI
- Color/Mono: Mono
- Array Diagonal : 18.8 mm
- Resolution: 4MP, 2048(H) x 2048(V)
- Pixel size: 6.5μm x 6.5μm
- Effective Area: 13.3mm x 13.3mm
- Peak QE: 95%@600nm
- Frame Rate: 74fps@CameraLink; 40fps@USB3.0
- Full-Well capacity: 45ke-
- Dynamic Range: 86dB
- Readout Noise: CMS: 1.1e-(Median)/1.2e-(RMS)
- Shutter Type: Rolling/Global Reset
- Exposure Time: 6.6μs-10s
- DSNU: 0.2e-
- PRNU: 0.3%
- Cooling Method: Air & Liquid
- Cooling Temperature: 45℃ below ambient
- Dark Current: Air: 0.15e-/pixel/s@-15℃, Liquid: 0.10e-/pixel/s@-25℃
- Optiona Interface: C-mount
- Data Interface: USB3.0 & Cameralink
- Binning: 2x2，4x4
- ROI: Support
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA
- Data Bit Depth: 16bit
- Power Supply: 12V/8A
- Power Consumption: 60W
- Dimensions : 85mm x 85mm x 125mm
- Weight: 1460g
- Software: Mosaic / LabVIEW / Matlab / Micromanager / MetaMorph
- SDK: Support
- Operating System: Windows / Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
显示更多
应用方向 >
资源下载 >
-
Dhyana 400BSI V2 Brochure
-
Dhyana 400BSI Dimension
-
Software-Mosaic V1.6.8
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-MetaXpress ( with user guide )
-
Plugin-Micromanager ( with user guide )
-
Driver-TUCam Camera Driver V1.4.0.7
